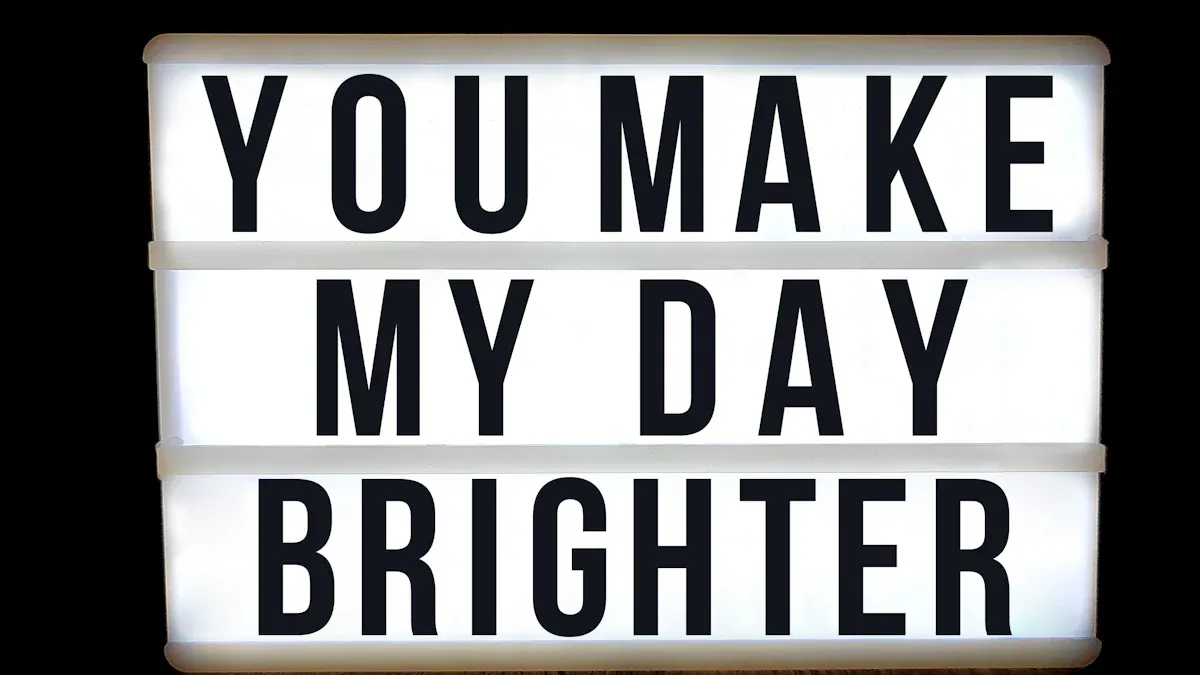

LED Light Box Making: Essential Techniques and Common Mistakes to Avoid

You want your led light box making project to shine bright and last long. The biggest problems often come from poor planning for mounting or using the wrong materials. If you pick low-grade parts, your signage can crack or fade fast. Bad optical design can leave dark corners or bright spots that ruin the look.

Paying attention to how you plan, choose, and install every piece will help you avoid costly mistakes and keep your display working safely.

Key Takeaways

• Think about your LED light box before you start. Decide what you want it to do. Pick how bright it should be. Choose where you will put it. This helps it look nice and work well.

• Pick good materials and LEDs. Good materials last longer. They also make your display look better. Good LEDs use less energy.

• Try not to make mistakes like picking the wrong LEDs. Watch out for voltage problems. Always read the instructions. Make sure everything works together and is safe.

• Take care of your light box often. Clean it so it stays bright. Look for problems to keep it working well.

• Make a checklist for your project. This keeps you organized. It helps you remember every step when you set it up.

Key Techniques in LED Light Box Making

Planning and Design

You want your led light box to look great. Start by making a good plan. Think about what you want your display to do. Do you want to sell more, help people know your brand, or give information? Each goal needs a different way to use lighting and signage.

When you plan, think about how bright the light should be. The light box must be bright enough for people to see. But it should not be so bright that it hurts their eyes. If you can change the brightness, you can save energy and make it comfortable.

Here are some steps to help you get good results: 1. Make sure your light box is bright enough to see well. 2. Do not make it too bright, or it will bother people. 3. Use brightness controls to save energy. 4. Decide if you will put your display on the ceiling or inside a wall. 5. Always use a voltage tester before you start to stay safe. 6. Plan how high and at what angle your sign will be for the best light.

You also need to know about industry rules.

It is good business to know the lighting rules for your warehouse or factory. Following OSHA’s lighting rules helps workers stay healthy. It also means fewer people miss work, fewer accidents, and better work.

Picking the right design and materials changes how your display looks and lasts. For example, a back-lit light box needs thicker materials to last longer and spread light evenly. Edge-lit boxes use thinner materials and give a soft, even light. If you pick the wrong materials, your sign might not last or look nice.

If you plan well, you will not have dark corners or bright spots. Your sign will look better and last longer.

Component Selection

Picking the right parts is important for led light box making. The type of led you use changes how your display looks, how long it lasts, and how much energy it uses. Not all leds are the same. Some last longer, some are brighter, and some handle heat better.

You also need to match your led strip light and connectors. Here are some things to check: - Voltage: Make sure the connector’s voltage matches your led strips (usually 12V or 24V). - Communication: Pick connectors that work with your led strips and controllers. - Connector types: Choose the right type (2-pin, 4-pin, 5-pin) for your display.

If you skip these checks, your sign might not work or could be unsafe. Always check if everything fits before you start. This keeps your lights bright and your sign working longer.

When you pick good materials and the right led strip light, you save energy and your sign lasts longer. Good choices mean your sign will be bright, use less power, and need fewer fixes. Your display will look good, and your lighting will be even and professional.

Common Mistakes in LED Light Display Box Projects

When you start a led light display box project, you want your lighting to look great and work safely. But many people run into problems that can ruin their signage or even cause danger. Let’s look at the most common mistakes and how you can avoid them.

Wrong LED Choice

Picking the wrong led for your led light display box can cause a lot of trouble. You might think any led will work, but that’s not true. Some leds use too much power and get hot fast. If you use a lamp with too much wattage, it can overheat. Wires might melt, and you could even have a fire hazard. Other leds are not bright enough, so your display looks dull and your signage does not stand out.

Here’s what can go wrong if you choose the wrong led:

• Your led light display box might get too hot and stop working.

• The lighting can look uneven, with some spots too bright and others too dark.

• You might pay more for energy because the leds are not efficient.

• Your signage could fade or look old before its time.

You want to pick leds that match your display needs. Always check the wattage and brightness. Make sure the led strip light fits your box and gives even lighting. If you follow the manufacturer’s guidelines, your signage will shine bright and last longer.

Voltage and Control Issues

Voltage problems are a big reason why led light display box projects fail. If you use the wrong voltage, your lighting can flicker or not turn on at all. Sometimes, you see color shifts or dimming in your display. This happens when the voltage drops or the driver gets too hot. If you push the system too hard, the parts inside can wear out fast.

Here’s a table that shows what can happen with voltage mismatch:

You also need to use the right controls for your led light display box. If you pick controls that don’t match your led strip light, you might not be able to dim or change colors. This can make your signage look bad or stop working. Always check the voltage and control type before you start wiring. Good planning keeps your lighting safe and your display looking sharp.

Tip: Never skip checking the voltage and controls. A small mistake here can cost you a lot later.

Cutting and Bending Errors

Many people make mistakes when they cut or bend led strips for their led light display box. If you cut the strips in the wrong place, they might not work at all. Some people bend the strips too much, which can break the tiny wires inside. This leads to dark spots or even a dead strip in your signage.

Here are some common cutting and bending errors:

• Cutting the led strip light at the wrong spot, so it won’t light up.

• Bending the strips too sharply, which breaks the circuit.

• Not using the right channel, which can pinch or damage the strips.

• Forgetting to seal the ends, so dust or water gets in and ruins the lighting.

These led channel mistakes can make your led light display box look messy and unprofessional. You want your signage to have smooth, even lighting. Always use the marks on the strips to know where to cut. Bend the strips gently, and use the right channels to hold them in place.

If you rush or skip steps, you risk poor performance and safety problems. Improper installation and bad wiring can make your led light display box unsafe. You might see flickering, overheating, or even fire hazards. Careful planning and good wiring help you avoid these issues and keep your lighting project safe.

Note: Take your time with each step. Good work now means your signage and lighting will last longer and look better.

Sizing, Diffusers, and Channels

Calculating Box Size

You want your led light display box to fit your space and show your signage clearly. Picking the right size is not just about guessing. You need to think about a few things before you start building.

• First, figure out the cabinet size for your led light display box. This helps you know how much room you have for your signage and lighting.

• Next, check the pixel pitch. This tells you how sharp your display will look. If you want crisp images or text, use a smaller pixel pitch.

• Look at the module size. This affects how you lay out your led strips and how your lighting spreads inside the box.

• Think about how far people will stand from your display. If your led light display box is too small, people might not see your signage well. If it’s too big, you waste energy and materials.

Choosing Diffusers and Channels

Picking the right diffuser and channel makes your led light display box look smooth and bright. The diffuser material changes how your lighting spreads. If you use a diffuser with high light transmittance, you get less haze. This can make your lighting uneven and leave bright spots. If you pick a diffuser with lower transmittance, you get more haze. This spreads the lighting better and gives your signage a soft, even glow.

You also need to match your led strips with the right channel size. If you use incorrect sizing of led channels, your led strips might not fit well. This can pinch the strips or block the lighting. Always check the channel size before you install your led strip light.

Tip: Test your diffuser and channel with your led strips before you finish your led light display box. This helps you see how your lighting will look.

Sizing Mistakes

Sizing mistakes can ruin your led light display box and make your signage look bad. Here are some common problems and what they do to your lighting:

If you do not plan your led light display box size, your lighting might not reach all parts of your signage. Bad placement of led strips can leave dark corners. Always measure your space and test your lighting before you finish your display.

Electrical and Heat Management in LED Light Boxes

Wiring and Power Supply

You want your led light display box to be safe and last. Start by using good wires and connectors. Pick UL-certified parts for your led light installation. Always turn off the power before touching any wires. This keeps you from getting hurt. Connect the live, neutral, and ground wires in the right order. After wiring, check every connection to make sure it is tight. Test your led light display box to see if it works.

Use the right wire thickness for your led strip installation. Wires that are too thin can get hot and cause trouble. Use proper connectors to hold wires together. Keep power wires and control wires apart so they do not mix signals. Label each circuit so you can fix problems later. Always follow local electrical codes for led light installation. This helps you avoid mistakes and keeps your signage safe.

Heat Dissipation Techniques

Heat can hurt your led light display box if you do not manage it. Good heat control keeps your lighting bright and your signage looking nice. Try passive cooling first. Use heat sinks or thermal pads to move heat away from your led strips. Give your leds space inside the box so air can flow. For bigger led light installations, you might need fans or coolers.

Reflective coatings can help send heat away from your leds. Always check the temperature inside your led light display box. If it feels too hot, change your cooling method. This keeps your lighting safe and helps your display last longer.

Safety Precautions

You should always think about safety when working with led light installation. Here are some important steps:

Tip: Plan well and install things the right way. This helps you avoid safety problems and keeps your led light display box working well.

Mounting, Assembly, and Maintenance

Secure Installation

You want your led light display box to be safe and look nice. Start by getting the right tools for led light installation. Use a tape measure to see how much space you have. A level helps you keep your display straight. Mark where you want to drill with a pencil. Use a drill and screwdriver to put the box on the wall. Wall anchors or drywall screws hold your signage tight. If you need to cut things, use a utility knife. Wire cutters and strippers help with led strips and wires. Always wear gloves and safety glasses to protect yourself. Use a ladder if you need to reach high places. Follow the steps for each led light display box you build. Here is a table to help you remember what each tool does:

Regular Cleaning and Upkeep

Cleaning your led light display box keeps it bright and clear. Use a microfiber cloth to wipe the outside. Compressed air blows dust off the led strips and lighting. Mild cleaning solutions help with tough dirt. Clean indoor displays once a month. If your display is outside or in a dusty place, clean it more often. In humid places, clean every few months. In clean areas, once or twice a year is enough. Look for rust or dew on your led light display box. Water can hurt your led strip lighting setup and cause problems.

Troubleshooting Common Problems

If your led light display box flickers or gets dim, check the power supply first. Use a multimeter to test the voltage. Change out any bad led strips or bulbs. Pick good constant current drivers for steady lighting. Make sure new wiring does not overload your fixtures. If your box gets too hot, let more air in and clean out dust. Keep your display safe from bad weather. Use strong led lights and parts for safety that lasts. Doing regular checks helps you find problems early and fix them. If you see rust or water, clean and dry your led light installation fast.

Tip: Good setup and care help your led light display box shine and keep your signage looking its best.

You can make led light box making easy and avoid common mistakes by planning ahead, picking the right parts, and keeping up with maintenance. When you use a checklist, you stay organized and build reliable signage every time:

• Read the manual and gather your tools.

• Clean your workspace and mark your wiring spots.

• Choose the best mounting method and secure everything.

Check out the benefits of getting it right:

Stay on top of these steps, and your led light box will shine for years.

FAQ

What is the best way to choose the right led for my light box?

You should look at brightness, color temperature, and energy use. Pick a led that fits your box size and lighting needs. Always check the specs before you buy.

How do I stop my led light box from overheating?

Give your led enough space for air to move. Use heat sinks or fans if needed. Clean dust from vents. Overheating can shorten the life of your led and make your display dim.

Can I cut led strips to fit my box?

Yes, you can cut most led strips at marked spots. Use sharp scissors and follow the guide on the strip. Cutting in the wrong place can break your led and stop it from working.

Why does my led light box flicker or dim?

This often happens when the power supply does not match your led. Check the voltage and wattage. Loose wires or bad drivers can also cause flickering. Fix these to keep your led bright.

How often should I clean my led light box?

You should clean your led light box once a month if it is inside. For outdoor or dusty places, clean more often. Use a soft cloth and avoid water near the led parts.

Tip: Regular cleaning helps your led shine brighter and last longer.
