Backlit LED Systems vs. Edge Light LED Systems for Sign and Display Applications

Choosing the best LED lighting system depends on what your project needs. Backlit LED Systems are very bright and spread light evenly. They work well for big signs or displays that need even lighting. Edge-lit LED lighting is thin and light. It uses less energy, so it is good for small displays or if you want to save money. The table below shows the main differences in brightness, evenness, thickness, energy use, and cost.

Key Takeaways

• Backlit LED systems are very bright and give even light. They work best for big signs and outdoor displays. These signs need to be seen from far away.

• Edge-lit LED systems are thin and light. They use less energy. They are good for small, indoor, or portable signs. These signs need to save space and power.

• Backlit LEDs cost more at first and use more energy. But they last a long time. They are also easier to fix because of their modular design.

• Edge-lit LEDs cost less and save energy. They do not need much care. But they might not be as bright on bigger displays.

• Picking the right LED system depends on your sign’s size and place. It also depends on your budget and how bright you want it. This helps your sign look and work its best.

Backlit LED Systems Overview

What Is Backlit LED?

Backlit LED systems light up displays from the back. They use aluminum frames to stay strong. The design is modular, so you can put them together easily. LED modules like SMD and COB give steady brightness and save energy. LEDs sit right behind the display surface for even lighting. You can set up the frames fast without tools. Strong connectors and covers keep the frame safe. You can change the brightness to fit different places. Many systems have smart controls for remote use. They also adjust brightness by themselves. Tension fabric graphics make smooth visuals from edge to edge. This makes backlit displays look better.

Backlit LED systems are strong and have many lighting choices. That is why professionals like to use them for signs.

Benefits of Backlit LED Systems

Backlit LED systems are very bright and even. They work well for big displays. Micro-LED displays use new technology to get very bright. They can reach over 32,000 Cd/m² with little change in brightness. This keeps light boxes from having dark spots or bright spots. It makes signs easier to read and nicer to look at. LED backlighting helps show clear images and keeps brightness steady. It works well even when lighting is tough. The modular design lets you change the size. LEDs use less power and make less heat. These systems last a long time, often more than 50,000 hours. This means less fixing and better performance. Smart features like remote control and automation help save energy and make lights easier to use.

Backlit Light Boxes

Backlit light boxes are a top use for backlit LED systems. You see them in stores, offices, hospitals, airports, and public places. The digital signage market is worth over $28 billion. This shows how common LED backlighting is now. Backlit light boxes show bright pictures that grab attention. They help businesses get noticed and sell more. Companies say they earn money back fast and make more sales with these signs. New tech like flexible and clear LED panels lets people make cool displays. You can have curved or see-through light boxes. Features like high dynamic range and wide color range make displays brighter and more colorful. Good thermal management helps them last longer. Backlit light boxes can run all day and night. They work great inside and outside.

• Backlit light boxes are used in stores and offices.

• LED backlighting gives steady brightness and saves energy.

• Modular and smart designs make them easy to change and control.

• New display tech helps make creative and strong displays.

Edge Lit LED Systems Overview

What Is Edge Lit LED?

Edge lit LED systems use a special design for lighting. Engineers put LEDs along the sides of a thin light guide plate. The light moves from the sides to the middle. It spreads out over the whole display. Dotted patterns and diffusers inside help spread the light. This makes the panel slim and light. That is why edge lit backlighting is popular for new displays. The table below shows how edge lit and backlit LED systems are different:

Benefits of LED Edge Lighting

LED edge lighting has many good points. The thin shape is a big plus. Makers can build very thin displays for small spaces. Edge lit technology also makes displays lighter. This helps with moving and setting them up. The design saves energy too. Edge lit LED panels use fewer LEDs and less power. This means lower energy bills and less heat. New studies show edge lit technology can make light brighter and more even. It also uses fewer LEDs. This means less power and thinner panels. Edge lit backlighting is a cheaper way to light up displays. People pick this system because it works well and saves money.

Tip: Edge lit LED lighting is best for projects that need a thin look and low power use.

Slim Design Applications

Edge lit LED lighting works in many places. Stores use edge lit light boxes to get shoppers’ attention. Museums and galleries use edge-lit LED panels to light up art without glare. Train stations and airports use edge-lit LED signs for directions and ads. Jewelry stores and fancy shops use clear edge-lit LED cases to show off items. Hospitals and malls use edge lit signs to help people find their way. More people want edge-lit LED displays because they are thin, save energy, and are easy to set up. Edge lit technology lets people make cool displays, like curved panels or hidden lights in cabinets. These displays give even, soft light and are easy to take care of. That is why they are great for stores and public places.

Key Differences Between Edge Lit and Direct Lit

Brightness and Uniformity

Brightness and uniformity are very important when picking led backlighting. Direct lit technology puts leds right behind the display. This makes the display brighter and spreads light more evenly. Backlit light boxes with direct lit can get very bright, from 1,000 to 1,500 nits. Mini-led versions can go over 2,000 nits. These systems have more dimming zones. This helps control contrast and keeps dark areas dark.

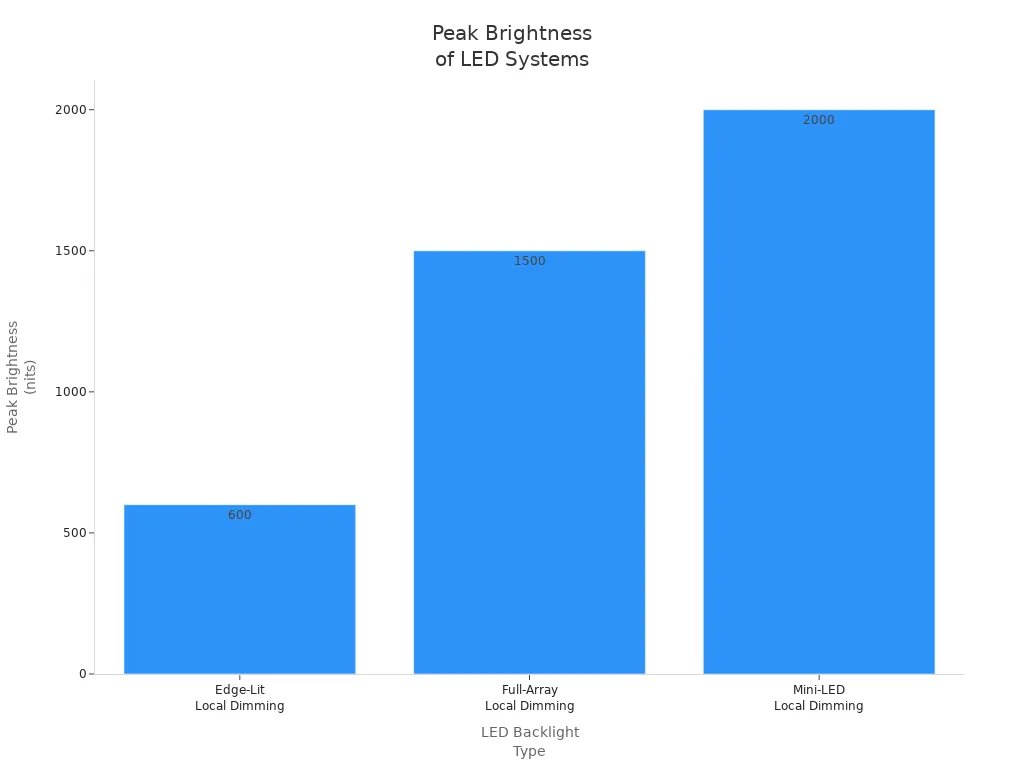

Edge lit backlighting puts leds on the sides of the panel. The light moves through a guide plate. This can make the brightness uneven, especially in big displays. Edge lit led lighting usually gets up to 600 nits. This means edge lit panels might have bright edges and darker centers, mostly in large signs.

Direct lit technology gives better brightness and even light. It is the top pick for big signs and light boxes that need to be seen well.

Thickness and Weight

Thickness and weight matter a lot when choosing led lighting. Backlit led systems use a grid of leds behind the display. This makes the panel thicker and heavier. For example, a commercial backlit led panel can be 5 mm to 15 mm thick. A 55 cm x 50 cm x 6 cm panel can weigh about 5 kg.

Edge lit led lighting puts leds only on the sides. It uses a thin light guide plate. This makes the display very slim. A normal edge-lit acrylic sign can be just 3 mm thick. It can weigh only 260 grams for a 19.5 cm x 30 cm panel. This thin style is great for places where space and weight are important, like wall signs or portable displays.

• Backlit led systems: Thicker and heavier, best for big, fixed displays.

• Led edge lighting: Thinner and lighter, good for slim, modern looks.

Energy Efficiency

Energy efficiency is another big difference between edge lit and direct lit led backlighting. Led edge lighting uses fewer leds and smart light guide plates. This design uses less power and makes less heat. Edge lit panels often give more light per watt, about 130 lumens per watt, and help save money on energy.

Direct lit technology in backlit led systems uses more leds across the panel. This can use more power, especially in very bright light boxes or big led walls. But new led tech has made both types better at saving energy. Backlit led systems now reach about 120 lumens per watt, but still use more energy because they have more leds.

Led edge lighting saves more energy, so it is a good choice for businesses that want to spend less on power.

Cost Comparison

Cost is very important for many businesses picking led backlighting. Edge lit led lighting systems usually cost less. They use fewer leds, need less material, and are lighter, so shipping and setup cost less. This makes edge lit backlighting a favorite for small signs, store displays, and projects with small budgets.

Backlit led systems with direct lit cost more at first. They have more leds, thicker panels, and are harder to put together, so the price goes up. Backlit light boxes and direct-lit led walls also cost more to run because they use more energy. But these systems work better, are brighter, and last longer, so they are worth it for important uses.

Durability and Maintenance

Durability and maintenance are different for backlit and edge lit led systems. Backlit led systems use modular led arrays. This makes fixing them easier. If one part breaks, you can just change that part. This helps keep signs and light boxes working with little downtime.

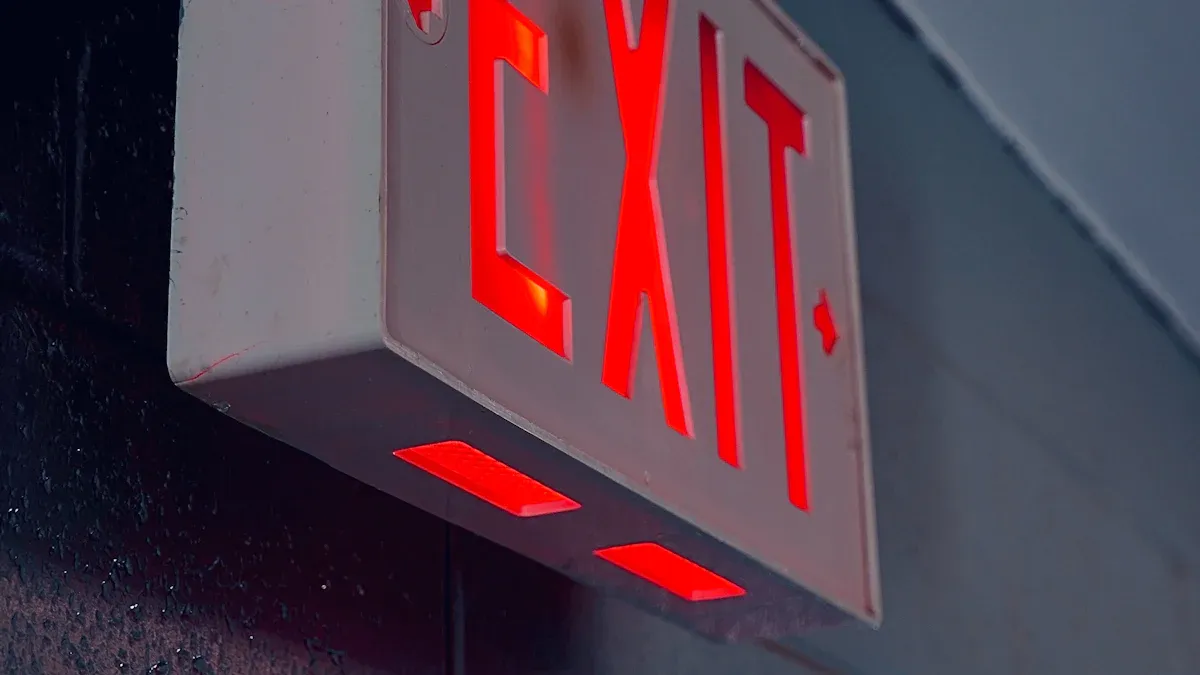

Led edge lighting systems are less modular, but the leds last a long time—over 50,000 hours. Their simple design and fewer parts mean less can break. Edge lit backlighting in exit signs and displays is very reliable and does not need much fixing. Both types come with good warranties from big companies, so you can trust them to last.

Both backlit and edge lit led systems are strong. Backlit led systems are easier to fix, but led edge lighting needs less fixing overall.

Application Suitability

Indoor vs Outdoor

Picking the right LED system depends on where you use it. Indoor signs need to be thin and light. Edge-lit LED systems are good for this. They use less power and make slim panels. This helps with battery-powered or portable signs. Outdoor signs need to be bright and tough. Backlit LED systems give strong, even light. They work well in sunlight and bad weather. This makes them last longer outside.

Tip: Use backlit LED systems for outdoor signs that need to be bright and strong. Edge-lit LEDs are best for thin indoor signs.

Large vs Small Displays

The size of the display matters when choosing an LED system. Backlit LED systems put LEDs behind the whole display. This gives even light and high brightness. They are best for big signs and video walls. Edge-lit LED systems put LEDs on the sides. This makes the display thinner but not as bright. Edge-lit systems work well for small or medium signs. If you need deep contrast and even light, pick backlit LED systems.

Professional vs Budget Use

Professional signs need to work for long hours and stay bright. Backlit LED systems are good for this. They have more features and are built strong. These systems are used in places like airports and stores. They also come with longer warranties. Edge-lit LED systems are cheaper. They use fewer LEDs and less material. This lowers the cost to buy and run them. Edge-lit systems are good for simple signs where saving money is important.

Note: Pick the right LED system for your sign’s size, place, and budget. This helps your sign work well and saves money.

LED Backlighting Myths

Common Misconceptions

A lot of people believe things about led backlighting that are not true. These wrong ideas can make people pick the wrong lights or worry for no reason.

• Some people think led backlighting is not bright or looks bad. But new led systems can shine in many colors, from warm to cool. They also show colors well. Led lights today can be as good or better than old lights. Traffic lights and car headlights use led backlighting. This shows leds are bright and work well.

• Some say led backlighting can hurt your eyes or make you blind. But science says normal use of led displays is safe. You would have to stare at a very bright bulb for hours to get hurt. That does not happen in real life.

• Some people worry blue led backlighting can cause cancer. There is no strong proof for this. Bright blue light can bother your eyes, but the risk depends on how much you see it. Led makers now make safer lights and change the color mix.

Led backlighting in signs is safe, bright, and works well. Most health worries come from not knowing the facts or using leds the wrong way.

Durability Concerns

People often ask if led backlighting will last a long time in signs. Good led displays can work for 8 to 11 years without stopping. Outdoor led backlighting has to deal with rain, snow, wind, heat, and sun. Signs made with weatherproof and UV-safe parts do not fade or turn yellow.

• Signs that fail may get dim, flicker, or let water in. Cleaning and checking signs often helps stop these problems.

• If led backlighting gets too hot, it will not last as long. Using good parts and putting them in right helps keep leds cool.

• Bad wiring or broken drivers can make leds flicker or go dark. Checking wires and using surge protectors helps leds work longer.

• Edge-lit led backlighting can sometimes look uneven, mostly in the corners. Backlit led systems with modular parts are easier to fix and upgrade.

Businesses should buy from trusted brands, control brightness, and check signs often. Doing these things helps led backlighting last longer and work better.

Picking backlit or edge-lit LED systems depends on what you want. Backlit displays are very bright and spread light evenly. They are best for big signs that need to stand out. Edge-lit panels are thin and light. They use less energy, so they are good for people who want to save money or need a modern look.

• Brightness and clear images help people see signs.

• Even lighting makes displays look smooth.

• Saving energy helps lower bills.

• Strong displays last a long time.

Experts say you should talk to a pro and think about how the display looks, how much power it uses, and the design before you choose.

FAQ

What is the main difference between backlit and edge-lit LED systems?

Backlit LED systems put LEDs behind the display. This gives bright and even light. Edge-lit LED systems have LEDs on the sides. This makes the panel thinner and lighter. Backlit systems are best for big signs that need to be seen.

Can edge-lit LED panels be used outdoors?

Edge-lit LED panels can be used outside if they are weatherproof. But backlit LED systems are brighter and last longer outdoors. Most experts say to use backlit systems for outdoor signs.

How long do LED sign systems usually last?

Most LED sign systems work for over 50,000 hours. Keeping them cool and checking them often helps them last longer. Many companies give warranties for extra safety.

Are backlit LED systems more expensive to maintain?

Backlit LED systems can cost more to fix because they use more LEDs and are thicker. But their modular design makes fixing them easier. Edge-lit systems need less fixing because they have fewer parts.

Which LED system is best for small retail displays?

Edge-lit LED systems are good for small store displays. They are thin, use less power, and cost less. These things make them great for stores with little space.

Tip: Always look at what the maker suggests before picking an LED system for your project.
